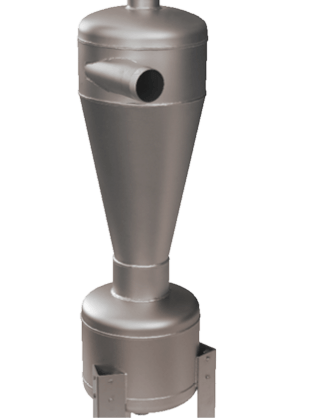

Hydrocyclones are an efficient system to separate sand from water. They can for example be used to protect plate heat exchangers on borehole water. As they work without any moving parts, they have a maximum reliability.
Stainless steel HN / HNC models are designed for long service life without the rust problems that steel hydrocyclones encounter. They are cylindrical or conical depending on the size. The vertical position of the tank makes drain easier.
TO BE DRAIN
MANUALLY
ABOUT
100 µm
UP TO
70 m3/h

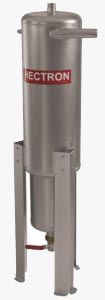

HN
Stainless steel housing
Flow rate up to 25 m3/h
Filtration : removes about 80% of particles above 100 µm
Maximum pressure : 10 Bar
Availables sizes (Inlet / outlet) :
1” BSP
2” BSP

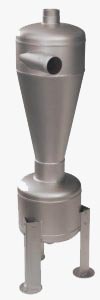

HNC
Stainless steel housing
Conicalshape
Flow rate up to 70 m3/h
Filtration : removes about 80% of particles above 100 µm
Maximum pressure : 10 Bar
Availables sizes (Inlet / outlet) :
3” BSP
DN100
